剖缝机

产品描述

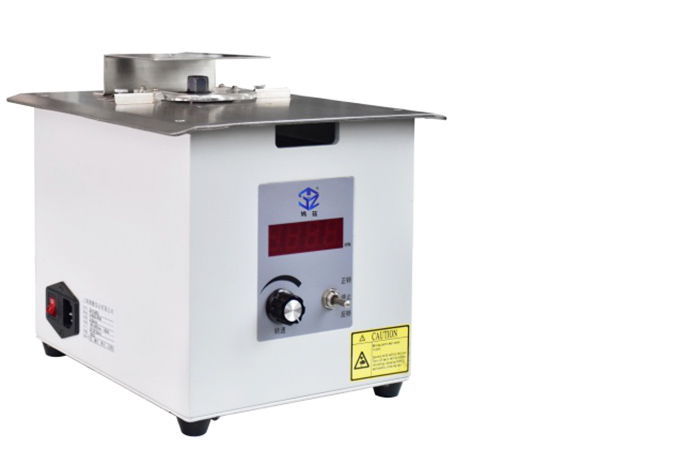

剖缝机 Cutting Machine

用途 Functionality：

主要是用于双面绒面料、双面呢面料的剖缝、劈缝。
It is mainly used for dissecting and splitting of double-sided velvet fabric and double-sided nylon fabric.

采用BLDC节能电机驱动，电磁噪音小，振动小，因无碳刷，寿命长，无需维护。软启动，冲击电流小，
对电网及周围其他用电设备干扰小。
It uses BLDC energy-saving motor as drive motors, controlled by MCU. Small electromagnetic noise
and vibration. Due to no carbon brush, the machine has long service life, no maintenance requirement .
Soft start adopted ensures low impulse current and less interference on the power grid and other surr-
ounding electrical equipment.

调速由面板旋钮实现无级调速，有四位数码管直观显示，保证了每次直接调至相同最佳速度。
Speed adjustment by the panel knob realizes step less speed regulation. Four digital tube visual display
ensures same best speed adjusted directly each time.

适用厚料、中厚料、薄料。正反方向可调。
It applies to thick ,medium, or thin fabrics .The machine can cut at forward and backward direction.

主要技术参数Main technical parameters

型号 Type	DH—CM01
剖缝速度 Cutting Speed	0-9000RPM
剖缝深度 Cutting Depth	0—50mm
剖缝面料范围 Fabric Type	厚料、中厚料、薄料 Thick material, medium thick material, thin material
适用刀片 Adaptable Knife	· 八角、六角、异形 · Octagonal, Hexagon, Special
旋转方向	正、反
吸风装置	可选配
输入功率 Input Power	60—350W
输入电压 Input Voltage	单相100—240VAC 50／60Hz
机器尺寸 Machine Size	322529cm
机头净重 Net Weight of Machine	20Kg
